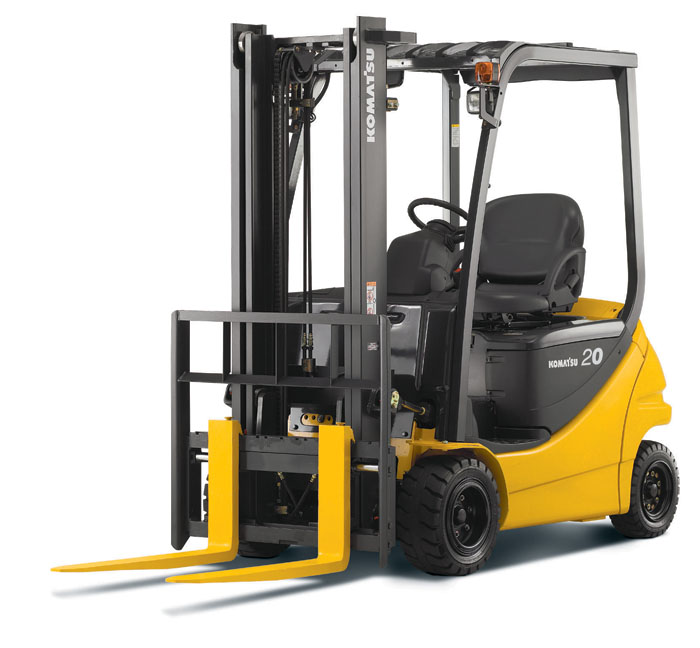

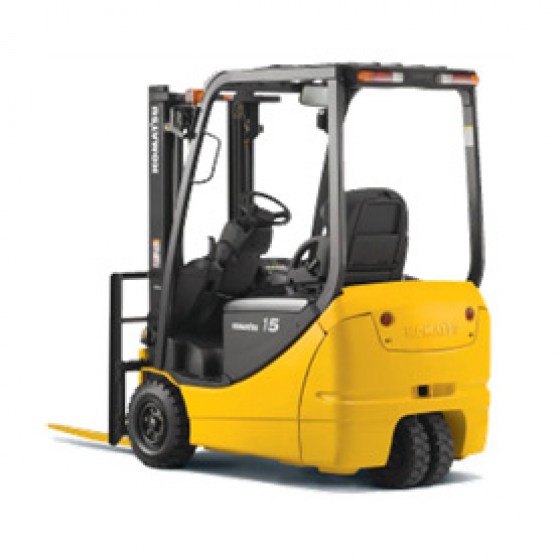

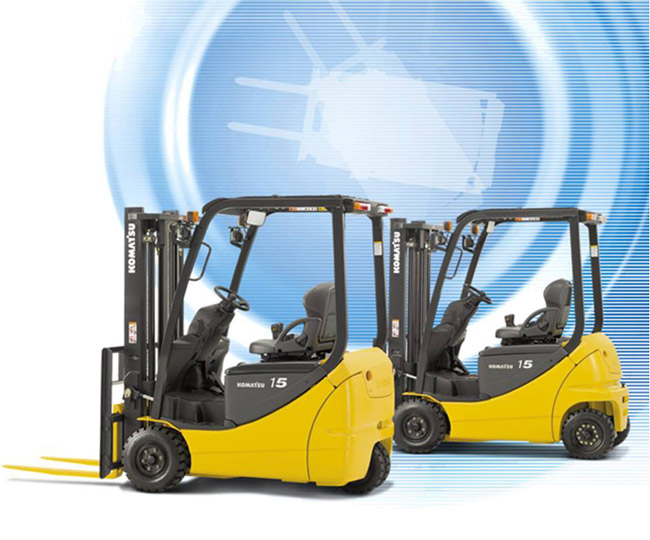

Komatsu AE/AM Series - 1.8 to 2.0 Tonne Capacity Battery Electric Forklift

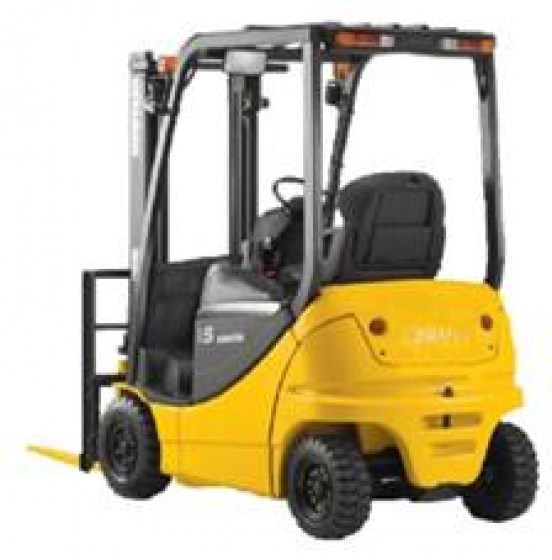

AM50 rear
Model Fuel Type Rated Capacity (kg) Load Centre (mm) Description Tyres Mast (m) Turning Radius (mm)
FB18-12 Battery 1750 500 4 Wheel Puncture Proof Full range 1785
FB18M-12 Battery 1750 500 3 Wheel Puncture Proof Full range 1590
FB20A-12 Battery 2000 500 4 Wheel Puncture Proof Full range 1850
FB20M-12 Battery 2000 500 3 Wheel Puncture Proof Full range 1690

Lower Operating Costs
  • Total AC System, Along with 2 traveling motors, the series also utilises advanced AC motors for hydraulic operation. This completely eliminates the need for motor brush or contactor replacements and has a long operating life.
  • Airtight Wet Disc Brake system

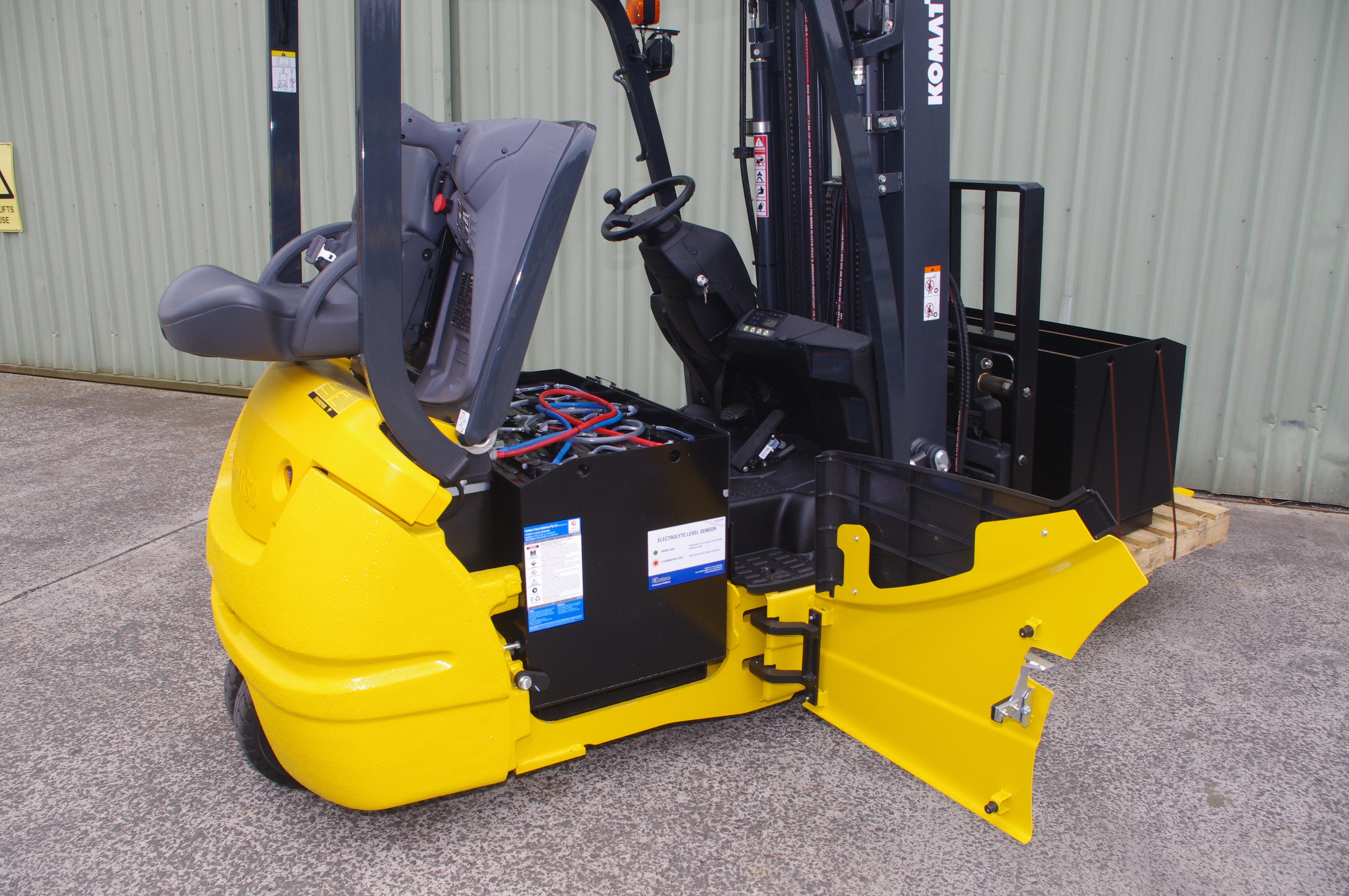

  • Side battery access
  • IP X4 Waterproof Standard Specification
  • Now, when you buy a new Komatsu forklift the warranty runs for 5 years or 10,000 hours operation (Subject to Komatsu Forklift Australia warranty terms & conditions).

Outstanding Performance
  • All-around dual drive
  • Superb turning stability


  • Programmable controller to adjust traveling, lifting and tilting speeds
  • Operator presence sensing system

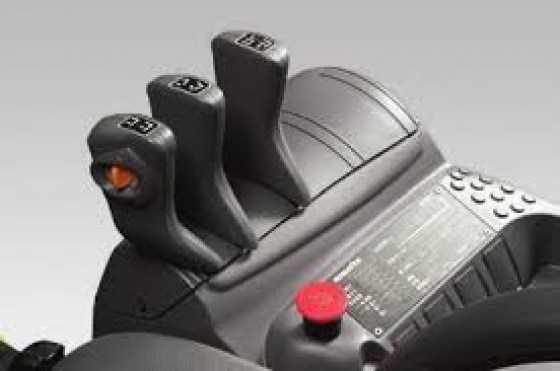

  • Ergonomic combination lever

Three Wheel Trucks with Pivot Turn Ability - AM50 Series

The AM50 Series features 3 wheel trucks with a rear wheel that can be turned 90 degrees. Furthermore, The forced inner wheel reverse function exclusively makes the front inner tyres rotate in the opposite direction when the rear wheel is turned

  Download Brochure

1.8 to 2.0 Tonne Capacity Battery Electric Forklift
