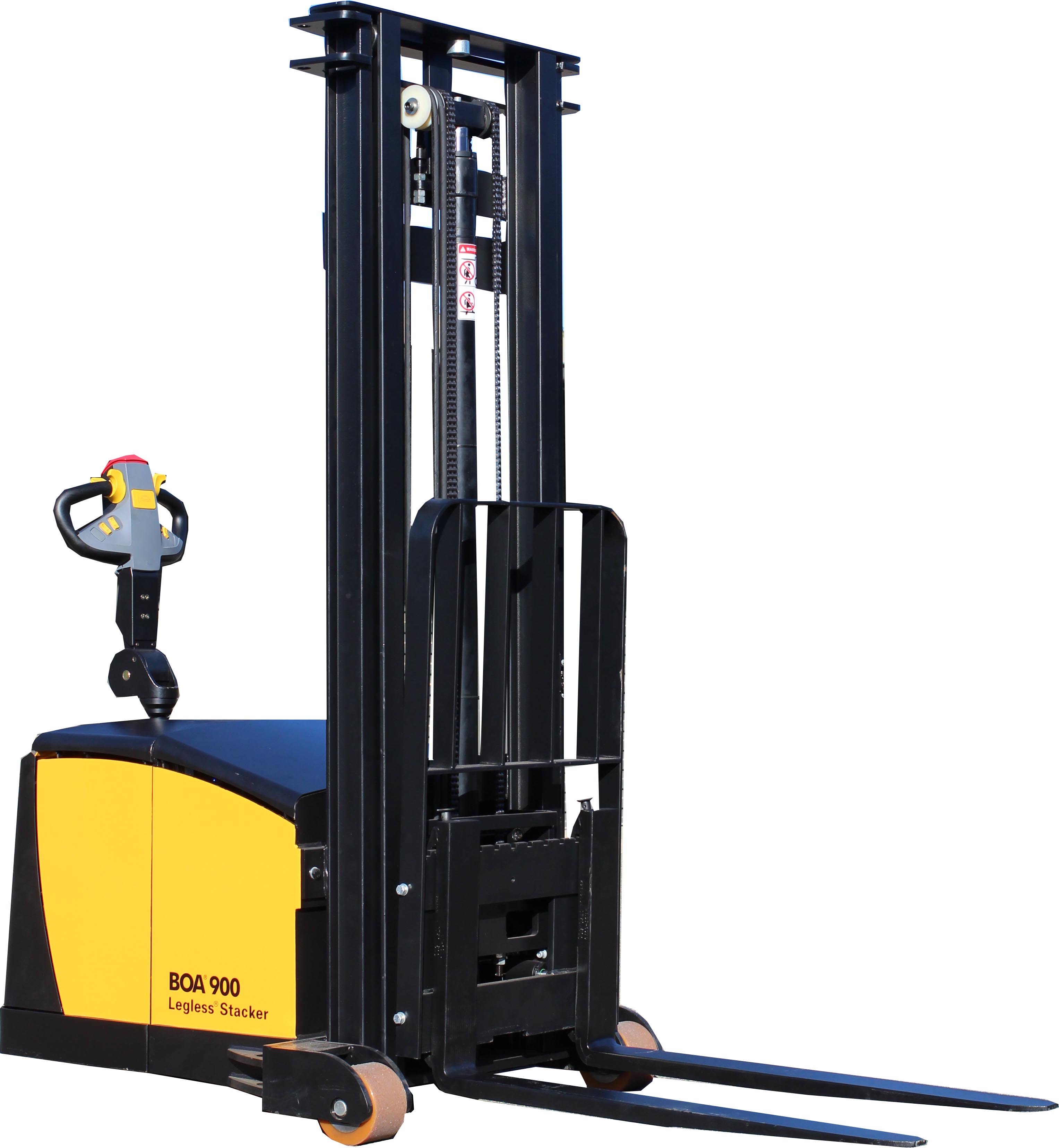

Legless Stradle Stacker 0.9 - 1.2 Tonne
| Model | Fuel Type | Rated Capacity (kg) | Load Centre (kg) | Tyres | Mast (m) | Turning Radius (mm) |
|---|---|---|---|---|---|---|
| Boa 0.9 | Battery | 900 | 600 | Polyurethane | 2.5 - 4.0 | 1100 |
| Boa 1.2 | Battery | 1200 | 600 | Polyurethane | 2.5 - 4.5 | 1310 |
Legless® Stacker with Power Steering & Tilt
Safety Features
The electric straddle stacker, also known as a legless stacker, is designed with numerous safety features to ensure optimal operation:
Dynamic Braking with "Ramp Start" feature
Wide view mast
Belly button reversing switch
Ergonomically designed butterfly-type speed control
Wrap around handguards
Deadman braking applies brakes & cuts power
Electronic & hydraulic overload protection
High speed cut out on fork elevation over 1800mm
Emergency power disconnect
Drive Train & Steering
The straddle lift truck features an advanced drive train and steering system:
Advanced AC 24V Drive Motor with sealed bearings
Super quiet Direct Drive Transmission
Curtis controlled system provides smooth acceleration and energy saving dynamic braking
Drive motor, transmission brakes and drive wheel are coupled to the full control handle
Drive and steering system is securely mounted within all steel chassis for maximum protection
Structural
The electric straddle stacker boasts a robust structure:
Chassis incorporates the latest Laser Lock technology
Fully welded Mast section provides strength and rigidity
Fork carriage is an integrated welded unit
Hydraulic System
The hydraulic system of the legless stacker is designed for optimal performance:
Full System filtration to prevent contaminants from entering the hydraulic system
Built in relief valve protects the system from overloads
Variable speed lowering is via control handle
Heavy duty gear pump provides smooth lift and with minimal power consumption
Electrical System
The straddle lift truck features a sophisticated electrical system:
24V system powered by a 210AH Traction Battery
Curtis programmable Control System controls functions via control handle
Direction, Horn and Lift/Lower Controls in full function control handle
Dash mounted key lock ignition and emergency
Stop Switch
Multi- function diagnostic gauge with lock out displays
The electric straddle stacker offers competitive speeds for various operations:
Travel, Lift & Lowering Speeds
Travel Speed: Fully Programmable
Lift Speed: Empty – up to 12m per min
Laden – up to 5.5m per min
Lowering Speed: Empty – up to 11m per min
Laden – up to 8m per min
Wheels
Polyurethane
Drive: 230mm DIA x 75mm wide
Load: 125mm DIA x 50mm wide
Optional Equipment
Hazard Light and Beeper
Rider platform (Asia models only)
Semi Traction batteries
Flame Proofing / Cold room Conditioning
Additional Benefits of the Electric Straddle Stacker
- Versatility: The legless stacker design allows for operation in tight spaces, making it ideal for warehouses, distribution centres and manufacturing facilities with limited aisle width.
- Energy Efficiency: The AC motor and energy-saving dynamic braking system contributes to lower power consumption, making the electric straddle stacker an eco-friendly choice for material handling.
- Enhanced Productivity: The combination of smooth acceleration, variable speed control and efficient lifting/lowering speeds allows for quick and precise material handling.
- Operator Comfort: Ergonomic design features like the butterfly-type speed control and wrap-around handguards reduce operator fatigue during long shifts.
