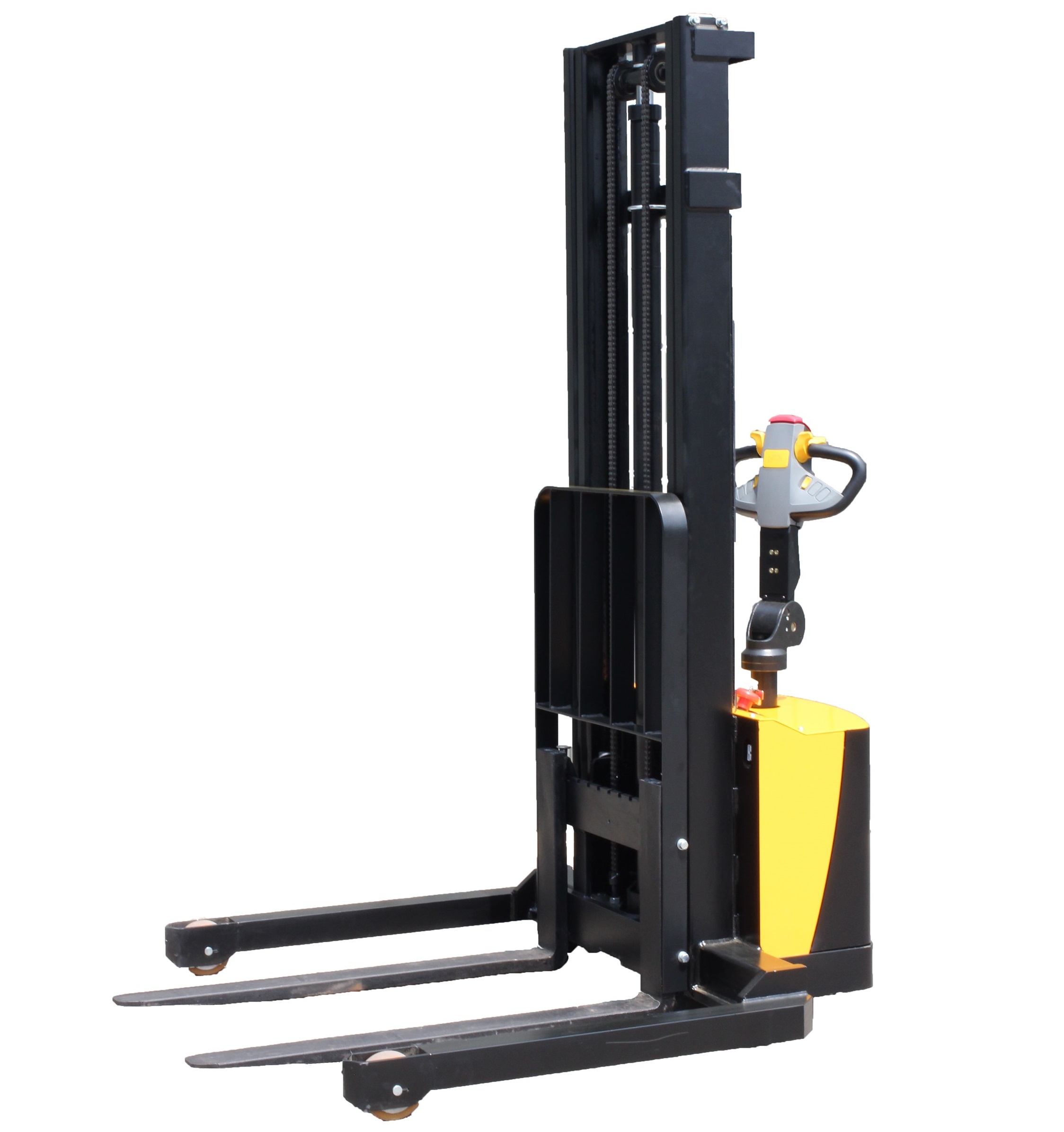

Straddle Stacker 1.0 Tonne

Suitable to be used in areas with reduced space for loading and unloading goods the walkie straddle stacker is the right solution for many applications. Operators will find it easy and safe to use.

Drive Train & Steering

Heavy duty Advanced 24 V DC Drive Motor with sealed bearings
Super quiet ZF Direct Drive transmission
Curtis control system provides smooth acceleration and energy saving dynamic braking
Drive Motor, transmission, brakes and drive wheel are all controlled by the control handle
Drive and Steering system is securely mounted within all steel chassis for maximum protection

Structural

Fully welded Mast section provides strength and rigidity.
Fork carriage is an integrated welded unit

Electrical System

24V system powered by 2 x 12V, 105AH Maintenance Free Batteries
Curtis programmable Control System controls functions via control handle
Multimode allows parameters for acceleration, speed and deceleration
Key Lock ignition incorporates emergency Power Off.
Direction, Horn and Lift/Lower Controls in full function control handle

Hydraulic System

Full System filtration to prevent contaminants from entering the hydraulic system
Built in relief valve protects the system from overloads
Heavy duty gear pump provides smooth lift and with minimal power consumption

Travel, Lift & Lowering Speeds

Travel Speed:
High – up to 6kph
Lift Speed:
Empty – up to 12m per min
Laden – up to 5.5m per min
Lowering Speed:
Empty – up to 11m per min
Laden – up to 8m per min

Wheels
Polyurethanes
Drive: 230mm diam x 75mm
Load: 150mm diam x 50mm

Optional Equipment

Hazard Light and Beeper
