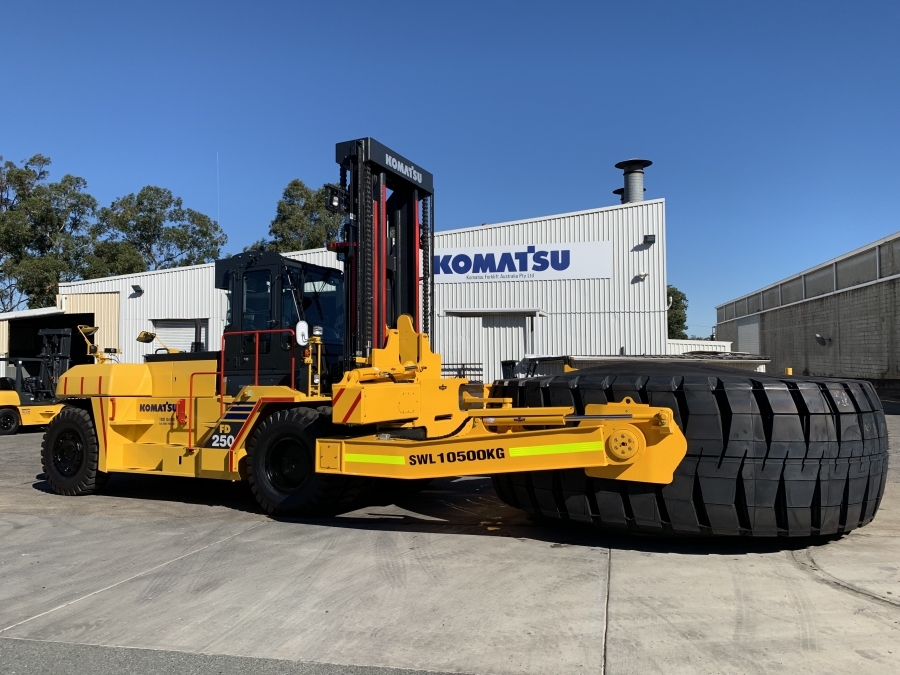

The Komatsu Tyre Handler allows you to safely handle OTR Tyres weighing up to 10 metric tons.

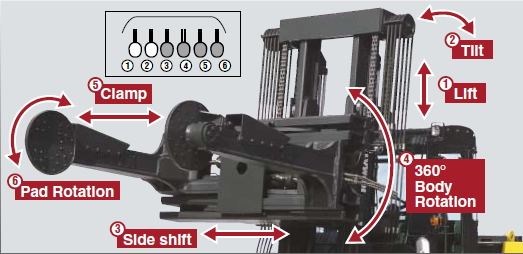

Our tyre handlers have the ability to rotate, tip and sideshift the tyre providing total flexibility to align the tyre to the truck and complete the tyre change without the forklift driver leaving the cab.
It has a capacity of 9300Kg at a 2800mm reach and load centres range from 600mm to 2800mm to handle tyres on the largest of trucks, especially in the mining industry.
In today’s ever changing environment it is important to be one step ahead of the rest. Komatsu Tyre Handlers are designed to liaise with the “big” equipment in the areas that older Tyre Handlers fail.
Safety is also a major concept faced by management and the operator’s everyday. To ensure your tyre handler is completing the job in a safe manner call a Komatsu Forklifts.
Features
Superior visibility through and over the frame for aligning the tyre and rim to the vehicle
Rugged steel frame and rigid arm design for increased overall durability and capacity
Heavy duty Cascade cylinder drive rotation system
Forward tipping pad design to safely set the tyre down flat
Lifting capacities of up to 15.6 metric tons
Ability to handle tyres ranging from 1.6m -4.1m in diameter and up to 1.885m wide
All hoses are internally located to prevent damage
The thinnest profile arms in the industry for those hard to access tyres
Unitized control valve with individual test points for fast fault diagnosis
Options
Mining specification.
Rubber dust boot covers for steer and tilt cylinders.
Anti-rust coating.
Auto greaser for mast and steer axle.
Smaller capacities available
Special rotation ranges
Non-Rotating models available for logistics operations
Multipurpose models available for handling other bulk freight
Special opening ranges available
Quick release pad options available for handling steel rims and protection chains
Joystick control system to operate all attachment functions (requires only two hydraulic hoses over the mast)
